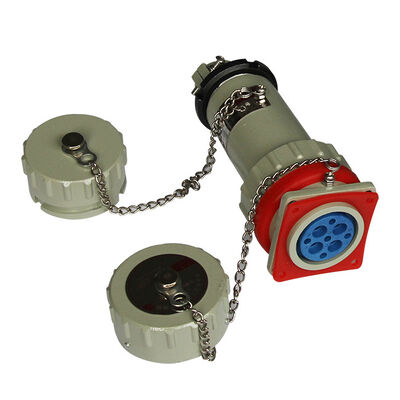

Rated Current 32A Explosion Proof Plug and Socket Ex Mark Ex Tb IIIC T80°C Db Designed for Industrial Oil Gas Application

Product Description:

The Explosion Proof Plug and Socket is a highly specialized electrical connector designed to ensure safety and reliability in hazardous environments. This product is engineered to meet the stringent requirements of explosive atmospheres, making it an ideal choice for industries where safety is paramount. With a robust construction and advanced safety features, the Explosion-Proof Plug and Socket provides secure electrical connections in Zone 1 Division 1 hazardous locations.

One of the key features of this Explosion Proof Plug and Socket is its Ex Mark certification: Ex Db Eb IIC T6 Gb and Ex Tb IIIC T80°C Db. These classifications indicate that the plug and socket are suitable for use in explosive gas atmospheres (IIC) and dust atmospheres (IIIC), providing a high level of protection against ignition sources. The T6 temperature rating ensures that the device will not exceed 85°C under fault conditions, thereby preventing any risk of ignition in flammable environments.

The product is specifically designed for use in hazardous Zone 1 Division 1 areas, where explosive gases or vapors are likely to be present during normal operation. This makes it an essential component for industries such as oil and gas, chemical processing, mining, and other sectors where explosive atmospheres pose a serious risk. The Explosion-Proof Plug and Socket ensures that electrical connections remain safe, secure, and reliable, even in the most challenging conditions.

Constructed entirely from high-quality whole plastic, specifically Glass Reinforced Plastic (GRP), this plug and socket combination offers exceptional durability, corrosion resistance, and electrical insulation. The use of GRP ensures that the product is lightweight yet strong enough to withstand harsh environmental factors such as moisture, chemicals, and mechanical impact. This material choice not only enhances the longevity of the product but also contributes to overall safety by preventing electrical faults.

The internal cores of the Explosion-Proof Plug and Socket are made from brass coated with silver. This combination of materials ensures excellent electrical conductivity and resistance to wear and corrosion. The silver coating minimizes contact resistance and enhances the longevity of the electrical connection, making it highly reliable for continuous use in hazardous environments. The brass core also provides mechanical strength and stability, which is critical for maintaining secure connections in demanding applications.

As an Intrinsically Safe Plug and Socket, this product is designed to limit the energy available for ignition, ensuring that it cannot cause sparks or thermal effects that might ignite an explosive atmosphere. This intrinsic safety feature is crucial for protecting both personnel and equipment in hazardous locations. The plug and socket are built to meet international standards for intrinsically safe devices, providing peace of mind to operators and engineers responsible for maintaining safe working environments.

In addition to being an Intrinsically Safe Plug and Socket, this product is also recognized as an Explosive Atmosphere Plug and Socket, capable of withstanding the rigorous demands of environments where explosive gases, vapors, or dust are present. Its explosion-proof design includes features such as sealed enclosures and robust mechanical construction to prevent any internal ignition from escaping and igniting the surrounding atmosphere.

Overall, the Explosion Proof Plug and Socket is a critical component for ensuring electrical safety in hazardous zones. Its combination of advanced materials, certified explosion-proof and intrinsic safety features, and suitability for Zone 1 Division 1 applications make it an excellent choice for industries requiring reliable and safe electrical connections in explosive atmospheres. By choosing this product, businesses can enhance operational safety, reduce downtime caused by electrical faults, and comply with stringent regulatory requirements for hazardous area equipment.

Features:

• Product Name: Explosion Proof Plug and Socket
• Protection Level: IP66, ensuring high resistance to dust and water
• Rated Current Options: 16A, 32A, and 63A to meet various power requirements
• Core Material: Brass coated with silver for enhanced conductivity and durability
• Ex Mark Certifications: Ex Db Eb IIC T6 Gb and Ex Tb IIIC T80°C Db for certified explosion protection
• Explosion Proof Rating: Suitable for Class I, Division 1, Groups C & D hazardous locations
• Designed specifically as an Explosive Atmosphere Plug and Socket for safe operation in hazardous environments
• Reliable Blast-Proof Plug and Socket construction to prevent ignition of surrounding gases or dust
• Certified Explosion-Proof Plug and Socket ensuring compliance with safety standards in explosive atmospheres

Technical Parameters:

Applications:

The Crown Extra Explosion Proof Plug and Socket, model AC8060, is specifically designed for use in hazardous environments where safety and reliability are paramount. Manufactured in China and certified with ATEX and ISO9001, this Explosion-Resistant Plug and Socket provides exceptional protection against sparks and electrical faults in explosive atmospheres. Its robust IP66 WF2 rating ensures it is dust-tight and protected against powerful water jets, making it ideal for harsh industrial conditions.

With a voltage rating of 220/380VAC and rated current options of 16A, 32A, and 63A, the Crown Extra AC8060 Explosion-Proof Plug and Socket is versatile for various industrial applications. It is primarily used in the oil and gas industry, where explosive gases and volatile substances are common. This Explosive Atmosphere Plug and Socket is engineered to prevent ignition sources, ensuring operational safety in hazardous locations such as refineries, chemical plants, offshore platforms, and mining sites.

The design of this Hazardous Location Plug and Socket emphasizes durability and secure connections, even under extreme environmental conditions. The product’s rugged construction and reliable sealing prevent ingress of dust and moisture, maintaining consistent electrical performance. Crown Extra’s supply ability of 5000 pieces per month guarantees availability for large-scale projects, and with a minimum order quantity of just 1 piece, it caters to both small and bulk orders efficiently.

Priced between $50.00 and $100.00, the AC8060 offers excellent value for safety-critical installations. Customers can expect delivery within 5-7 working days, with payment terms handled via TT, ensuring smooth and timely procurement. This Explosion-Resistant Plug and Socket is the preferred choice for industries requiring certified, high-quality electrical components that withstand the risks of explosive atmospheres.

In summary, the Crown Extra AC8060 Explosion-Proof Plug and Socket is an essential solution for industrial oil and gas applications and other hazardous locations. Its compliance with international safety standards, combined with robust performance and reliable supply, makes it an indispensable component for maintaining safe electrical connections in challenging environments.
